Platform wear-resisting bend pipe performance comprehensive description Name : SCHWING outlet elbow E type Specification : DN180A R600-14¡ã Material :ZG40 CrMo Weight(kg) :25.3 Manufacture process :Precision casting Dimmension and degree tolerance :£¼1mm£¼1¡ã Pressure :280bar Flange section :Precision machining surface painting: Epoxy Resin Paint Lifetime:(Conventional work environment;The average data from the survey of 50 customers in 5 countries ):1160 working hours Application: Specially used for SCHWING concrete boom pump

Product name: Pipe clamp Specification: 5.5 \" Geometric dimension (mm): A :140.5 B :148.5 C :172 D :37.5 E:32 F:26.2 Type: Snap Coupling Material :40Cr Weight(kg) :3.9 Manufacturing technique :Forged Hydraulic pressure:160bar Surface coating:Galvanized Lifetime(Conventional working environment):＞3 years

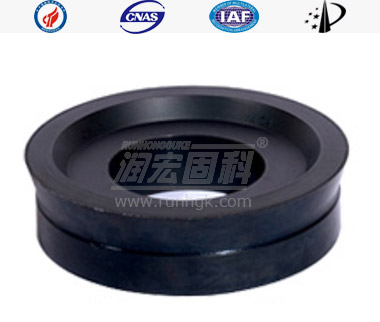

Name : Pistion Specification : PM 200 Structure :Integrated Material :Rubber sandwiched iron core Dimension: ?211 * 198H Lifetime(Conventional working environment; The average data from the survey of 50 customers in 15 countries) : 610 Working hours Notes:2 PCS/ Set

Conveying cylinder performance comprehensive description Name: PM Conveying cylinder Specification: 200¡Á1585 Material: Special steel Chromeplate thickness cmm: 30 Inner surface hardness HV: £¾920 Inner hole surface roughness: £¼Ra0.4 Inner hole straightness tolerance: £¼0.02mm/1000mm Inner hole roundness tolerance: £¼0.02mm Weight kg: 95.0 Lifetime:2860 working hours (Conventional working environment;the average data from the survey of 50 customers in 15 countries)
