Automatic stencial laminating machine (soft on hard) XCT97-A2 1、 About the application field of Automatic stencial laminating machine (soft on hard) XCT97-A2 Automatic stencial laminating machine are widely used in a variety of touch screen laminating (namely glass (COVER LENS) and functional pieces (SENSOR GLASS) fit, maintenance; assembly laminating (capacitive touch screen (CTP) and LCD module (LCM), OLED laminating); OGS laminating (OGS GLASS) and LCD module (LCM), OLED laminating); glass (COVER LENS) and ON CELL display module, IN CELL display module full laminating such as， mobile phone touch screen, capacitive vehicle navigation, capacitive LCD, capacitive tablet PC, LCD / LCM assembly with CTP manufacturer . 2 、About the basic parameters of Automatic stencial laminating machine (soft on hard) XCT97-A2 2.1 Input Power， AC220V 50-60HZ 2.2 Operating modes， 7-inch HMI 2.3 Rated power， 0.75KW 2.4 vacuum treatment， External vacuum 2.5 combined way， Roller up, pan fit 2.6 soft board fixture， automatic alignment adjustment 2.7 Working pressure， 0.8Mpa 2.8 Working environment， 10-60 ℃, 40% - 95% 2.9 Crimp Time， 1 99s 2.10 Productivity， 5s/pcs 2.11 alarm， alarm light, buzzer 2.12 Security， pneumatic, electronically controlled multi-level protection 2.13 Applicable Size， 500 * 550mm (less) 2.14 Program control， PLC control, servo control, IPC 2.15 Flip mode， Flip cylinder 3、 About the functions and characteristics of Automatic stencial laminating machine (soft on hard) XCT97-A2 3.1 Japan SMC brand pneumatic components. 3.2 IPC control device movement, 17-inch LCD surface. 3.3 using CCD visual images camera, servo motor control a three-axis UVW platform automatic alignment. 3.4 two ion blower and a set of FFU addition to electrostatic devices. 3.5 Panasonic servo motor control, control movement. 3.6 protection equipment safety grating, hands start button.

Polarizer attached machine polarizerattach machine Automatic Polaroid polarizer attach equipmentmachine for LCD repair up to 8 inch polarized film Laminator Machine (7 shafts) fastest film laminate machine for LCD screens refurbish POL film laminating machine， Polaroid film machine， Polarizer film laminating machine， POL film laminating machines， Polaroid film machines， Polarizer Attach machines， 1、About the application field of POL film laminating machine XCP65-T1， Polarized light pressure film machine is widely used in the big size production and maintenance of all kinds of within 80 inch LCD screen and display panel ;Such as LCD TV, LCD, laptop manufacturer, etc. 2、About the basic parameters of POL film laminating machine XCP65-T1， 2.1 Input supply， 7-inch HMI 2.2 Applicable size，within 80 inches (can be customized) 2.3 Parameters of storage ，500 group 2.4 Vacuum processing， External vacuum 2.5 Program control ，PLC controller +servo controller 2.6 Approach of combined， 120 degrees turn pasting, Synchronous tear film 2.7 Body main material ， aluminum of high strength electrophoresis 2.8 Environmental processing， FFU high efficiency filters 2.9 Input Supply， AC220V 50 - 60HZ 2.10 Rated power， 0.75KW 2.11 Pressure treatment ，0.01 - 0.8Mpa pointer valve adjustment 3、About the functions and characteristics of POL film laminating machine XCP65-T1， 3.1 the unique structural design of bonding can meet requirements of the flat (within 80-inch) lamination process . 3.2 soft and hard board is bonded to the tear membrane (protective film) simultaneously. 3.3 Polaroid adsorption classes skillfully designed to ensure hundred percent adsorbed a large area firm and flat. 3.4 super long design of plastic wheel, with no deformation, anti-static, elastic foot, large contact area and so on. 3.5 Use Japan control system, human-machine interface, high precision servo system and high-precision machine parts can meet the requirements of various large area Laminating process . 3.6 Pasting smooth, no bubbles, without wrinkles. 99.5% of the products after pasting with no need for defoaming. 3.7 Imported motor drive imported optical fiber induction positioning. 3.8 Imported PLC control, touch screen human-machine interface, set up the parameters simple and intuitive view ,convenient easy to operate, can set up to modify the parameters and stored many sets of parameters which pasting different products required. 3.9 Overall structure of the machine humane, safe, nice.

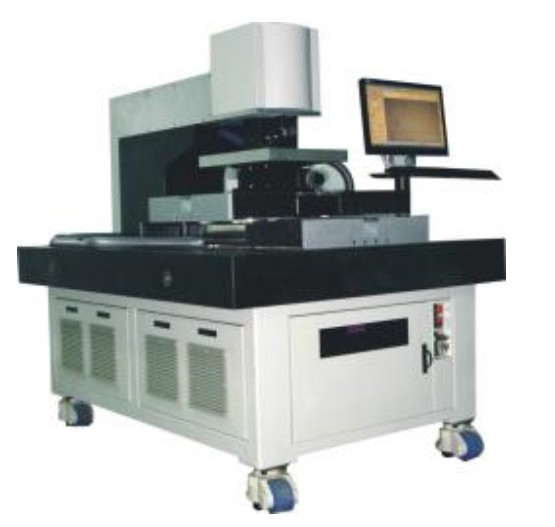

laser refurbishment machine for LCD repair & touch screen repair machine Laser repair machines , laser refurbishment machine XCQ77-A1, Laser repair machine, laser refurbishment machines, Lasing repair machine, Lasing repair machines, 1、About the application field of Laser repair machines， Laser repair machines are widely used in various large-size liquid crystal display (LCD), liquid crystal display (MONITOR), Tablet PC (PAD), LCD / LCM production, assembly, repair enterprises. 2、Basic parameters of XCQ77-A1 2.1 X and Y axes move a minimum accuracy of 1μ. 2.2 The minimum spot diameter is 5mm. 2.3 Z-axis stroke 50mm, the smallest movement accuracy 1μ, Z-axis maximum loading capacity 20kg. 2.4 R-axis maximum adjustment travel minimal regulation accuracy ± 5 Degree 0.01 Degree. 2.5 rocker stall number 4, the corresponding regulation accuracy， 1μ, 10μ, 100μ, 1000μ. 2.6 Maximum table load 30kg. 2.7 Power Input， 220V, 50Hz 3、About the functions and characteristics of Laser repair machines， 3.1 can choose different wavelengths to respond to a wider range of material cutting. 3.2 Cutting of good consistency, repeatable cutting. And maintain a good consistency. 3.3 can intuitively by remote control panel operation, the menu is displayed on the LCD panel. 3.4 panel on HI / LO power level control knob can achieve a wide range of cutting energy precise control, while maintaining optimal beam performance. 3.5 Easy installation, no effort to maintain, no toxic gases.

Bonding machine for LCD Refurbishment XCM71 - A5 FOG/FOB bonding machines， bonding equipment， bonding machine， FOB bonding machine， bonder machine， bonder equipment，1. About the application field of FOG/FOB bonding equipment XCM71 - A5 FOG / FOB bonding equipment is widely used in a variety of LCD and the large size of display panel's production and maintenance; such as， television (TV), laptop computers (NOTE BOOK), liquid crystal display (MONITOR), Tablet PC (PAD ), LCD / LCM production enterprises. 2.About the basic parameters of FOG/FOB bonding equipment XCM71 -A5 Input Power， AC220V 50-60Hz Working pressure ，0.4-0 .8 Mpa Operating modes， 7-inch HMI Dimensions， L2210 × W1730 × H1500 mm The method of Heating， heating or pulse heating thermostat The quantity of Fixture， 2 group X-Y-θ micrometer adjustable Range of Temperature ， RT-500 Control program， PLC controller Body main material， Steel + baking varnish The thermocouple， K type 3.About the functions and characteristics of the FOG/FOB bonding equipment XCM71 - A5 3.1use pneumatic components of Japan SMC and high-precision the moving parts 3.2 use temperature controller of Japan and The function module of the integral PID self-tuning temperature,accurate temperature. 3.3 Imported PLC control，the operation of 7-inch full-color touch-screen 3.4SUNSOM the elimination structure of double-cylinder deadweight, accurate pressure.

Desktop laminator machine for LCD repair &refurbishment machine, Desktop laminator machine Desktop version laminating machine XCT31-A1 1、About the application field of Desktop version laminating machine XCT31-A1 Desktop version laminating machine XCT31-A1 is widely used in various of LCD screen (i.e. glass (COVER LENS) and functional sheet (SENSOR GLASS) laminating and repair; assembly laminating(capacitive touch screen (CTP) of the liquid crystal module (LCM) , OLED Bonding); OGS Bonding (OGS GLASS) and LCD module (LCM), OLED Bonding); glass (COVER LENS) and ON CELL display module, IN CELL display module full fit. Such as， mobile phone touch screen, capacitive car navigation, capacitive LCD, capacitive tablet PC, LCD / LCM assembly manufacturer with CTP. 2,About the basic parameters of Desktop version laminating machine XCT31-A1 2.1 input power， AC220V 50 60 hz 2.2 rated power， 1.0 KW Work pressure 2.3，0.4 0.8 Mpa 2.4 use the size， within 8 inchs 2.5 joint， table translation. 2.6 modes of operation， 7 inch human-machine interface 2.7， external vacuum ，vacuum treatment 2.8 pressure settings， CRD precision pressure regulator valve 2.9 program control， PLC and servo controller 2.10 way， gas flip flip 3、About the functions and characteristics of the Desktop version laminating machine XCT31-A1 3.1 soft membrane absorption plate clever design, bedding face absorp strongly and level 3.2 import control system, man-machine interface, servo systems such as precision components meet the technological requirements of high precision. 3.3 high power antistatic electrostatic ion blower to eliminate processing. 3.4 X - Y - theta three-axis precision calibration, laminating precision is high. 3.5 fuselage main frame adopts steel or electrophoretic aluminum, beautiful and durable.
